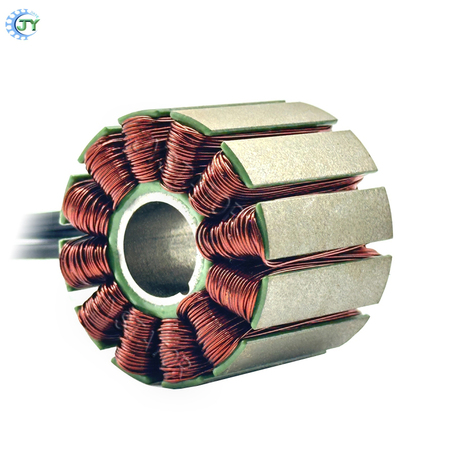

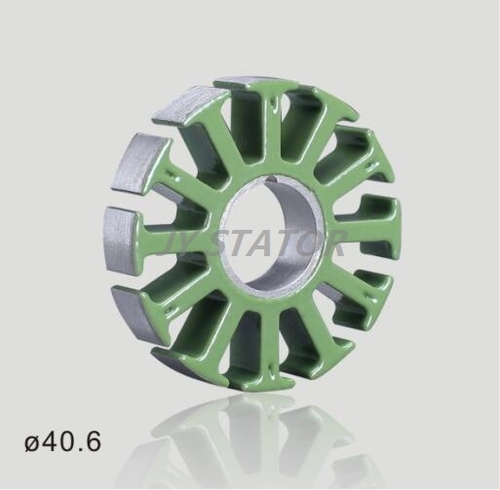

40.6*14*12slots*0.2mm brushless motor stamping
OD: 40.6mm
ID: 14 mm
Slots No.: 12
Material: 20JNEH1200--0.2mm
Coating Thickness: 0.15-0.25mm
Coating Color: Green or Blue
Lamination technology: Interlock
This is ready-made tooling stators being widely used fro Brushless motors ; Fixed wing drone motor 4130 motor, 4120 motor;also for hot-selling model MN4110/4125 Motors;

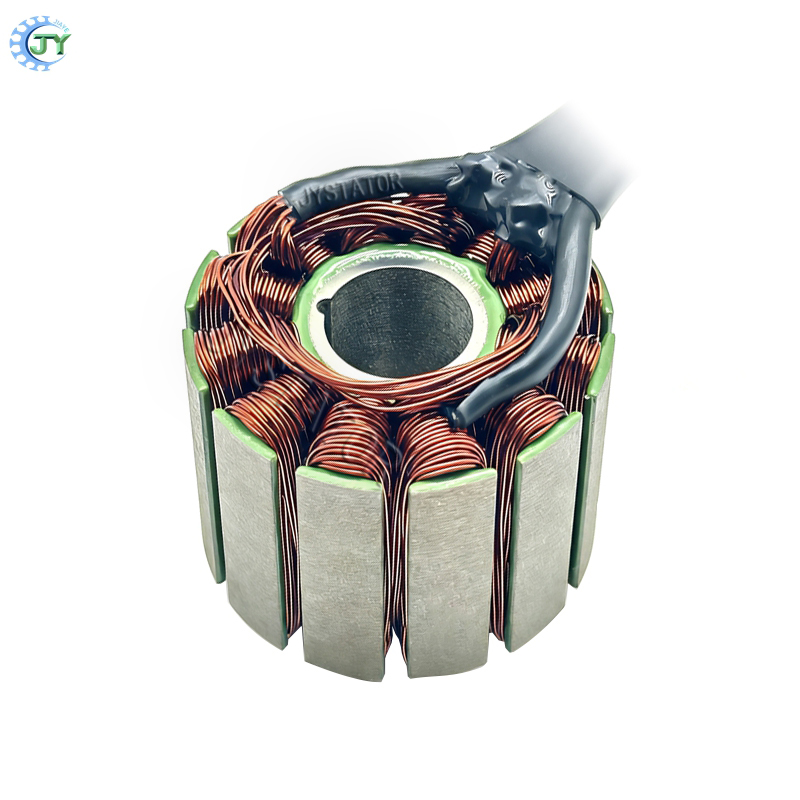

we can also provide customs winding for 40.6mm stators with ready-made winding tooling; JYSTATOR are producing more than 10k pcs 4130 stators and winding every day;
